MRTLPP series / cable management
Cable support.
Installation
made simpler.
Black polypropylene tray liners in flat and folding sidewall profiles. Ships flat, with tool-less locking tabs on sidewall configurations.
Specifications at a glance
Choose your tray liner.
All fits · All nominal sizes. Basor rows are coming soon; specifications TBD.
With sidewalls
Fold along preformed hinges. Secure with integral locking tabs; cable-tie points provide additional fastening.
Flat
Drop into the basket. Six cable-tie mounting points secure the liner.
| Catalog SKU · 10 pack | Fit | Nominal width | Profile | Base width | Ship-flat width (A) | Side height (C) |
|---|---|---|---|---|---|---|
| MRTLPP-12.4S-10PK | Standard | 12″ | 4″ sidewalls | 11.61″ (295 mm) | 19.49″ (495 mm) | 3.94″ (100 mm) |
| MRTLPP-12.F-10PK | Standard | 12″ | Flat | 11.61″ (295 mm) | 11.61″ (295 mm) | — |
| MRTLPP-18.4S-10PK | Standard | 18″ | 4″ sidewalls | 17.51″ (445 mm) | 25.39″ (645 mm) | 3.94″ (100 mm) |
| MRTLPP-18.F-10PK | Standard | 18″ | Flat | 17.51″ (445 mm) | 17.51″ (445 mm) | — |
| MRTLPP-24.4S-10PK | Standard | 24″ | 4″ sidewalls | 23.43″ (595 mm) | 31.30″ (795 mm) | 3.94″ (100 mm) |
| MRTLPP-24.F-10PK | Standard | 24″ | Flat | 23.43″ (595 mm) | 23.43″ (595 mm) | — |
| MRTLPP-36.4S-10PK | Standard | 36″ | 4″ sidewalls | 35.31″ (897 mm) | 43.19″ (1097 mm) | 3.94″ (100 mm) |
| MRTLPP-36.F-10PK | Standard | 36″ | Flat | 35.31″ (897 mm) | 35.31″ (897 mm) | — |
| MRTLPP-B.12.4S-10PKComing soon | Basor | 12″ | 4″ sidewalls | TBD | TBD | TBD |
| MRTLPP-B.12.F-10PKComing soon | Basor | 12″ | Flat | TBD | TBD | TBD |
| MRTLPP-B.24.4S-10PKComing soon | Basor | 24″ | 4″ sidewalls | TBD | TBD | TBD |
| MRTLPP-B.24.F-10PKComing soon | Basor | 24″ | Flat | TBD | TBD | TBD |
| MRTLPP-B.36.4S-10PKComing soon | Basor | 36″ | 4″ sidewalls | TBD | TBD | TBD |
| MRTLPP-B.36.F-10PKComing soon | Basor | 36″ | Flat | TBD | TBD | TBD |
No catalog rows for this size and fit. Upcoming BasorFil options are listed for 12″, 24″, and 36″.
BasorFil SKUs are coming soon; final specifications are pending. Dimensions, including sheet length, are TBD; standard dimensions do not apply.
Standard specifications source: Made Ready Tool-Free Tray Liner spec sheet · February 2026. Drawing MRTLPP-SPEC.01.21.2026. Base width is dimension B for sidewall liners and A for flat liners. Full drawings and listed weights are in the source sheet.
Select a SKU to inquire. Confirm basket fit and availability. For BasorFil-specific geometry, request the matching design rather than selecting by nominal width alone.
Designed around the installation
The fastener is
already part of it.
The liner’s integral tabs engage the wire basket to hold the sheet in place. Sidewall configurations use preformed hinges so the sides can be folded on site.
It’s a practical approach to cable tray lining, with handling and installation considered together.
- Rigid material creates a continuous surface over basket crossbars.
- Integrated locking tabs secure the liner to the wire basket.
- Sheets ship flat for handling before installation.
- Sidewall variants fold along preformed hinges.

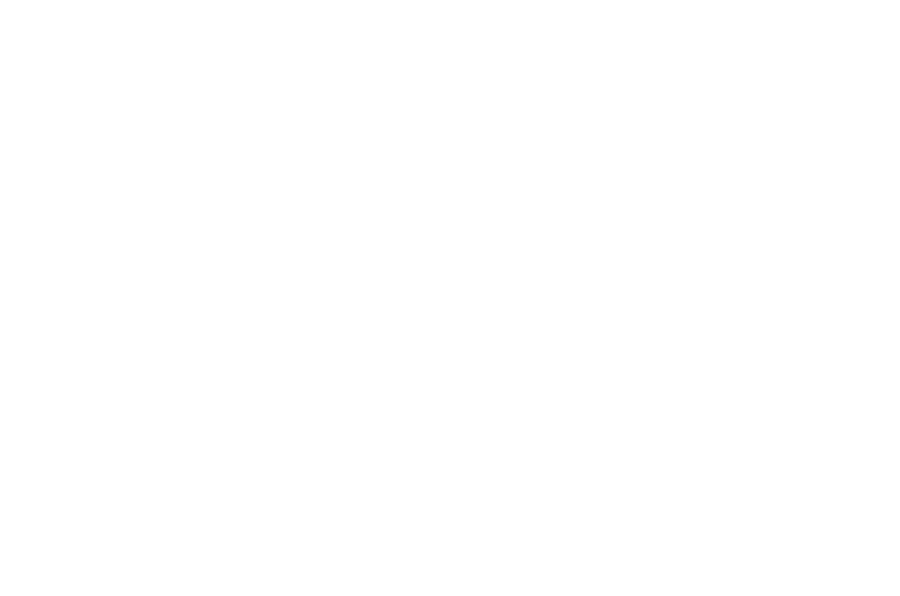

Sidewall configuration · Original product drawing
See the product at work
Installation, step by step.
Made Ready installation demonstration · Sound off by default.
Confirm the liner and basket combination before installation. Folding and locking tabs apply to sidewall liners.

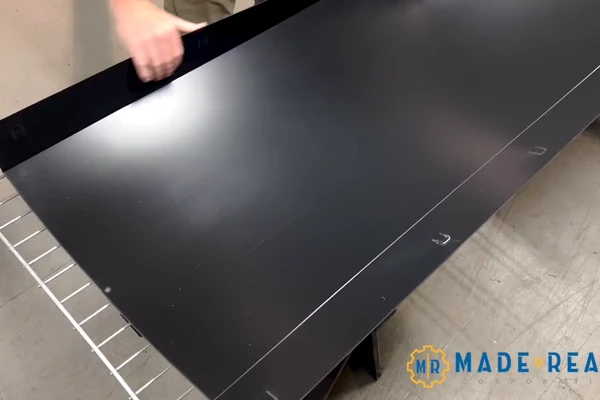

Fold the sides.
Use the preformed hinge lines on sidewall variants.

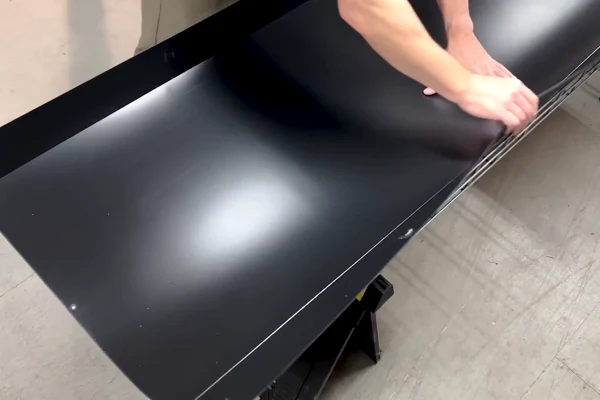

Position in the basket.
Place the liner into the matching wire basket section.

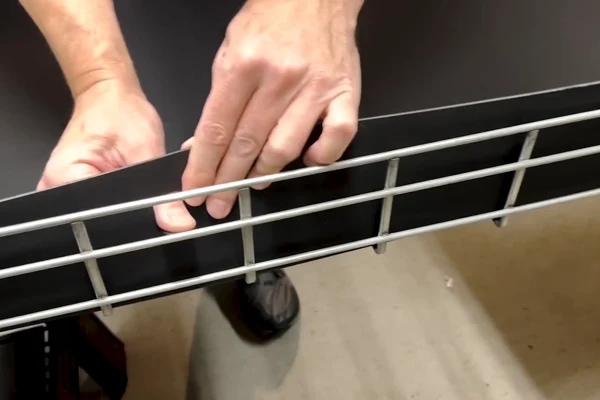

Engage the locking tabs.
On sidewall liners, secure the liner to the basket using its integral tabs.

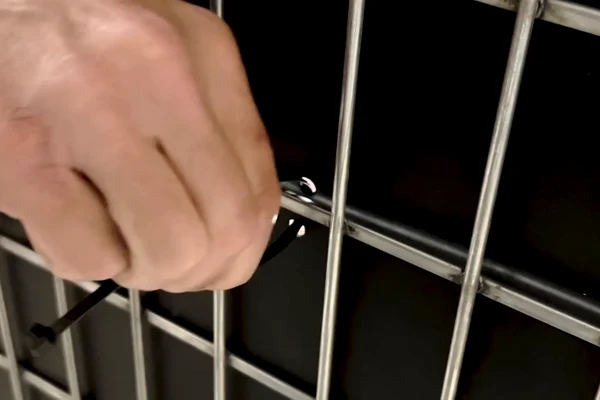

Add optional zip ties.
Butt the liner ends together. Pass ties through the matching end holes and around the basket wire, then tighten.
Recommended: 3/16″ (4.8 mm) wide × 4″ (100 mm) or longer. Fits the 7 mm attachment holes.
