PRODUCT SPECIFICATIONS

M|R TOOL-LESS TRAY LINER

Made•Ready’s M|R tray liner is lightweight and installs quicky without any tools. Locking tabs engage the wire basket to lock the liner into place. Made of lightweight and rigid flame-retardant polymer.

• Black
• Lightweight
• Ships flat
• Quickly fold sides on pre-formed hinges
• Lock into place with tool-less secure lock tabs

Patent Pending (click here)

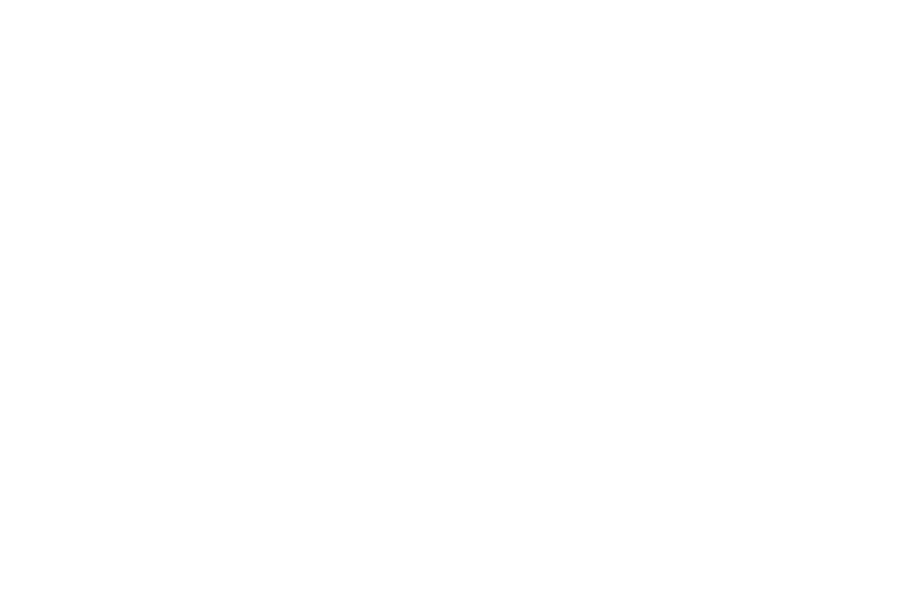

Dimensions: in. (mm) / lbs. (kg)

catalog Sku	DESCRIPTION	A	B	C	L	WEIGHT
MRTLPP-24.4S	24" tray liner with 4" sides	31.51" (800mm)	23.63" (600mm)	3.94" (100mm)	59.2 (1503mm)	3.8 (1.7)
MRTLPP-18.4S	18" tray liner with 4" sides	25.51" (648mm)	17.64" (448mm)	3.94" (100mm)	59.2 (1503mm)	3.1 (1.4)
MRTLPP-12.4S	12" tray liner with 4" sides	19.49" (495mm)	11.62" (295mm)	3.94" (100mm)	59.2 (1503mm)	2.4 (1.1)

Our products do not require any special tools, making installation as easy as a snap!

M|R TOOL-LESS BLANKING PANELS

Made•Ready’s M|R Blanking panels make installation a snap! Simply press in place until the unit seats with a snap. Remove by pulling on the ergonomic handles. Controls airflow to optimize cooling efficiency. Made of flame-retardant polymer.

• Black
• Lightweight
• Ships flat
• Quickly fold sides on pre-formed hinges
• Lock into place with tool-less secure lock tabs

Patent Pending (click here)

Dimensions: in. (mm) / lbs. (kg)

catalog Sku	W	H	D	LBS
MRBP-19-1U	19" (483)	1.75" (44.5)	1.36" (34.5)	.22 (0.98)
MRBP-23-1U	23" (584)	1.75" (44.5)	1.36" (34.5)	.26 (0.12)
